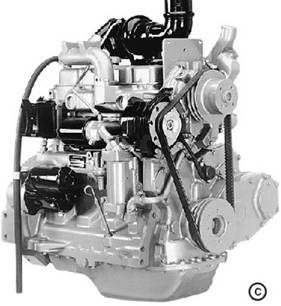

John Deere約翰迪爾強鹿4039DF柴油發動機技術性能參數

PERFORMANCE DATA

STANDBY POWER

PRIME POWER

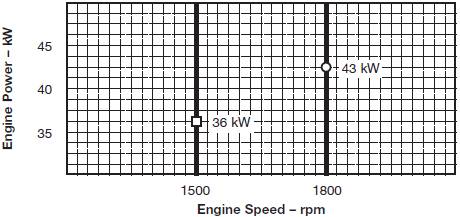

Performance Data 1500 rpm 1800 rpm

Gross Rated Power (without fan)

Prime = PRP – kW (hp) .............................................. 36 (48) 43 (58)

Standby = LTP – kW (hp) .......................................... 40 (54) 49 (66)

Rated Speed – rpm ........................................................ 1500 1800

Low Idle Speed – rpm........................................................ No No

BMEP

Prime = PRP – kPa (psi) ........................................ 730 (106) 737 (107)

Standby = LTP – kPa (psi)...................................... 820 (119) 840 (122)

Friction Power @ Rated Speed – kW (hp).................... 14 (19) 17 (23)

Altitude Capability – m (ft) .................................. 1525 (5000) 1525 (5000)

Air: Fuel Ratio

Prime = PRP ............................................................ 21.0 : 1 22.0 : 1

Standby = LTP .......................................................... 18.0 : 1 20.0 : 1

Noise

Prime = PRP – dB(A) @ 1 m .......................................... 91.8 94.3

Standby = LTP – dB(A) @ 1 m ...................................... 92.3 95.0

STANDBY POWER is the nominal engine power available at

varying load factors for up to 500 hours per year. This rating

conforms to ISO 8528-1 “l(fā)imited time running power (LTP)”.

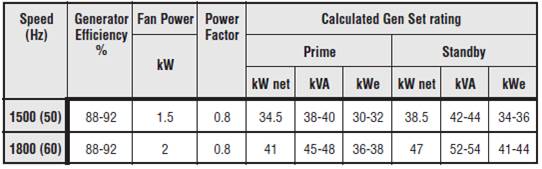

The calculated generator set rating range for standby applications

is based on minimum engine power (nominal –5%) to

provide 100% meet-or-exceed performance for assembled

standby generator sets.

PRIME POWER is the nominal power an engine is capable

of delivering with a variable load for an unlimited number of

hours per year. This rating conforms to ISO 8528-1 “prime

power (PRP)”.

Fuel Consumption – l/h 1500 rpm 1800 rpm

Prime = PRP Standby = LTP Prime = PRP Standby = LTP

25% Power ................................ 3.0 ...................... 3.5 .............................................. 4.0 ...................... 4.5

50% Power ................................ 5.0 ...................... 5.5 .............................................. 6.0 ...................... 6.5

75% Power ................................ 7.5 ...................... 7.5 .............................................. 9.0 ...................... 9.5

100% Power ................................ 9.0 ...................... 10.0 ................................................ 10.5 ...................... 11.5

General Data

Model ............................................................................ 4039DF

Number of cylinders ................................................................ 4

Bore and Stroke – mm (in.) ....................106 x 110 (4.19 x 4.33)

Displacement – dm3 (in3) .............................................. 3.9 (239)

Compression Ratio ........................................................ 17.8 : 1

Valves per Cylinder – Intake/Exhaust ................................ 1 / 1

Firing Order .................................................................... 1-3-4-2

Combustion System .......................................... Direct Injection

Engine type ........................................................ In-line, 4-cycle

Aspiration ........................................................................ Natural

Engine Crankcase Vent System ........................................ Open

Engine Crankcase Pressure – kPa (in.H2O) .................... 0.5 (2)

Physical Data

Length – mm (in.) .................................................... 1016 (40.0)

Width – mm (in.) ........................................................ 588 (23.1)

Height – mm (in.) ........................................................ 960 (37.8)

Weight, dry – kg (lb) .................................................. 468 (1032)

(Includes flywheel housing, flywheel, & electrics)

Center of gravity location

From Rear Face of block (X-axis) – mm (in.) .......... 306 (12.0)

Right of Crankshaft (Y-axis) – mm (in.) .................... –13 (–0.5)

Above Crankshaft (Z-axis) – mm (in.) ........................ 145 (5.7)

Electrical Data

Recommended Battery Capacity (CCA)

12 Volt System – Amp ...................................................... 640

24 Volt System – Amp ...................................................... 570

Maximum Allowable Starting Circuit Resistance

12 Volt System – Ohm .................................................. 0.0012

24 Volt System – Ohm .................................................... 0.002

Starter Rolling Current – 12 Volt System

At 0°C (32°F) – Amp .......................................................... 780

At –30°C (–22°F) – Amp .................................................. 1000

Starter Rolling Current – 24 Volt System

At 0°C (32°F) – Amp .......................................................... 600

At –30°C (–22°F) – Amp .................................................... 700

Air System 1500 rpm 1800 rpm

Maximum Allowable Temperature Rise

Ambient Air to Engine Inlet – °C (°F) ..................8 (15) 8 (15)

Maximum Air Intake Restriction

Dirty Air Cleaner – kPa (in. H2O) .................. 6.25 (25) 6.25 (25)

Clean Air Cleaner – kPa (in. H2O) ...................... 3 (12) 3 (12)

Engine Air Flow

Prime = PRP – m3/min (ft3/min) ...................... 2.4 (85) 3.0 (107)

Standby = LTP – m3/min (ft3/min) .................... 2.6 (93) 3.3 (117)

Exhaust System 1500 rpm 1800 rpm

Exhaust Flow

Prime = PRP – m3/min (ft3/min) ...................... 6.7 (237) 8.4 (300)

Standby = LTP – m3/min (ft3/min) .................. 7.4 (261) 9.3 (328)

Exhaust Temperature

Prime = PRP – °C (°F) ................................ 540 (1004) 560 (1040)

Standby = LTP – °C (°F) .............................. 600 (1112) 625 (1157)

Max. Allow. Back Pressure – kPa (in.H2O) ........ 7.5 (30) 7.5 (30)

Recommended Exhaust Pipe Dia – mm (in.) 63.5 (2.5) 63.5 (2.5)

Cooling System 1500 rpm 1800 rpm

Thermostat Start to open – °C (°F).................... 82 (180) 82 (180)

Power Unit Coolant Capacity – L (qt) .......... 16.5 (17.5) 16.5 (17.5)

Minimum Air to Boil temperature – °C (°F) ...... 47 (117) 47 (117)

Fuel System 1500 rpm 1800 rpm

Fuel Injection Pump .................................... Stanadyne Stanadyne

Governor Regulation ................................................ 5% 5%

Governor Type ............................................ Mechanical Mechanical

Total Fuel Flow

Prime = PRP – kg/h (lb/h) .............................. 92 (203) 95 (210)

Standby = LTP – kg/h (lb/h) .......................... 92 (203) 95 (210)

Maximum Fuel Transfer Pump Suction – m (ft) 0.9 (3) 0.9 (3)

Fuel Filter Micron Size @ 98% Efficiency .................. 8 8

Lubrication System 1500 rpm 1800 rpm

Oil Pressure at Rated Speed – kPa (psi) .......... 345 (50) 345 (50)

Oil Pressure at Low Idle – kPa (psi) .................. 105 (15) 105 (15)

In Pan Oil Temperature – °C (°F) .................... 115 (240) 115 (240)

Total Engine Oil Capacity with filter – L (qt) .... 12 (12.7) 12 (12.7)

Engine Angularity Limits (continuous)

Any Direction – degrees .......................................... 20 20
