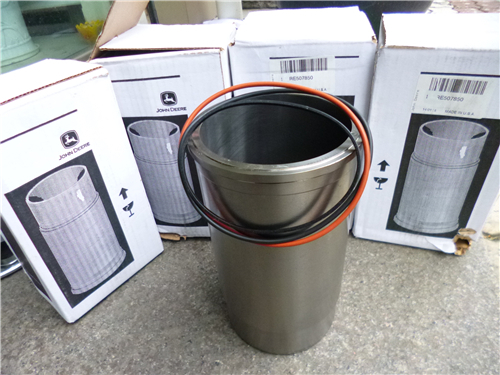

John Deere約翰迪爾強鹿柴油發動機缸套突出量的測量方法與標準值參數

1. Secure liners using cap screws and flat washers. Flatwashers should be at least 3.18 mm (1/8 in.) thick.Tighten cap screws to 68 N•m (50 lb-ft).

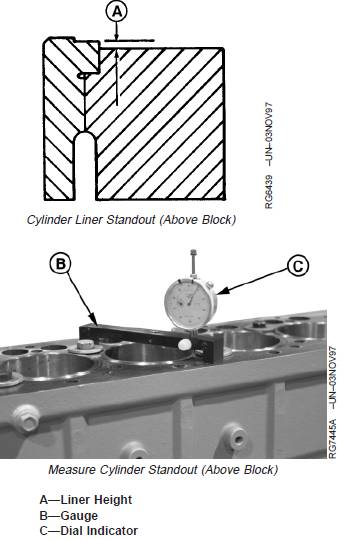

2. Using JDG451 or KJD10123 Gauge (B) and D17526CIor D17527CI Dial Indicator (C), measure liner height

(A) at 1, 5, 7, and 11 o’clock positions as viewed fromflywheel end of engine. Record all measurements bycylinder number.

Specification

Cylinder Liner—Height aboveBlock 0.030—0.100 mm(0.001—0.004 in.)

Maximum Permissible HeightDifference at Nearest Point ofTwo Adjacent Liners, or Within a

Single Liner................................................................. 0.05 mm (0.002 in.)

IMPORTANT: ONE LINER SHIM ONLY may beinstalled under each liner flange.

3. Remove and shim, or replace, any liner that does notmeet height specifications. (See REMOVE CYLINDERLINERS in Group 030.)

NOTE: Two sizes of shims are available: 0.05 mm (0.002in.) and 0.10 mm (0.004 in.).

氣缸蓋的安裝

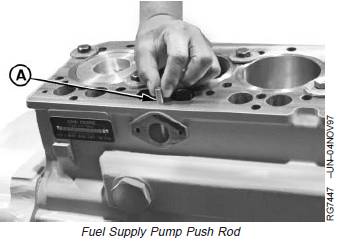

1. Dip fuel supply pump push rod (A) (if equipped) inclean engine oil and carefully install in cylinder blockbefore installing cylinder head.

A—Fuel Supply Pump Push Rod

IMPORTANT: The O-ring seals in head gasket can bedamaged if head is repositioned whileresting on engine block. Use guidestuds to position cylinder head onblock.

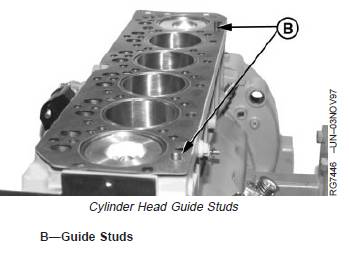

2. Install two guide studs (B) in cylinder block at locatingholes.

IMPORTANT: ALWAYS thoroughly inspect cylinderhead gasket for possible manufacturingimperfections. Return any gasket thatdoes not pass inspection.

3. Place new head gasket on cylinder block. Do not usesealant; install dry.

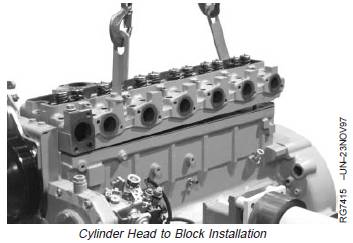

4. Position cylinder head over guide studs and lower ontocylinder block.

5. Dip entire cap screw in clean engine oil. Removeexcess oil from screw.

6. Remove guide studs. Install flanged-head cylinderhead cap screws.

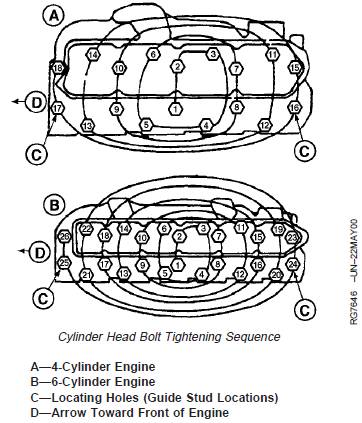

7. Tighten all cap screws to specified torques (insequence shown, beginning with No. 1), followingsteps 1—4 below. Then, torque-turn cap screwsfollowing procedure on next page.

Cylinder Head Cap Screws—Specification

Step 1—Initial—Torque ................................................. 100 N•m (75 lb-ft)

Step 2—Second—Torque ........................................... 150 N•m (110 lb-ft)

Step 3—Verify (After 5Minutes)—Torque........................................................ 150 N•m (110 lb-ft)

Step 4—Final—Torque-Turn Tighten each screw an additional60° ± 10°. (See TORQUE-TURNMETHOD FOR PROPERTORQUE in this group.)

Retorque of cylinder head cap screws after enginebreak-in is not required when using the recommendedtorque procedure along with flanged-head cap screw.
