John Deere約翰迪爾強鹿柴油發動機氣缸蓋和墊片零件圖冊
詳細描述
氣缸蓋和墊片

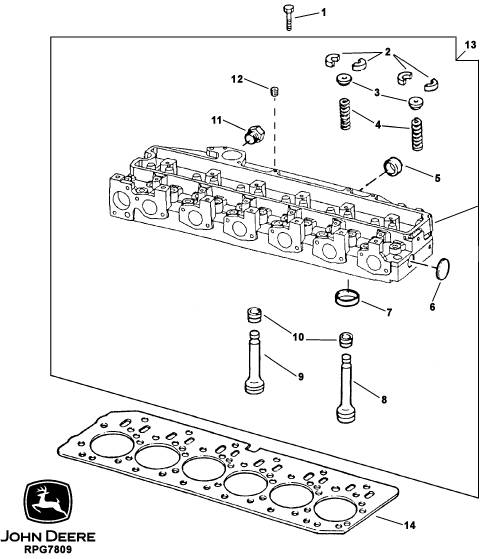

John Deere約翰迪爾強鹿6068 6.8L柴油發動機氣缸蓋和墊片零件圖冊
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R85363 CAP SCREW 26 X X X 12.700 X 112 MM (1/2" X 4.409")
2 R91889 RETAINER 24 X X X
3 RE60005 ROTATOR 12 X X X
4 R26125 SPRING 12 X X X
5 R43409 CAP 3 X X X
6 CD16284 CAP 1 X X X
7 R98063 VALVE SEAT INSERT 6 X X X (A) STD (DUBUQUE T0, TORREON PE)
R98335 VALVE SEAT INSERT AR X X X (A) OS (DUBUQUE T0, TORREON PE)
R106831 VALVE SEAT INSERT 6 X X X (A) STD (SARAN CD)
R85687 VALVE SEAT INSERT 6 X X X (B) STD (DUBUQUE T0, TORREON PE)
R93910 VALVE SEAT INSERT AR X X X (B) OS (DUBUQUE T0, TORREON PE)
R106829 VALVE SEAT INSERT 6 X X X (B) STD (SARAN CD)
8 R90692 EXHAUST VALVE 6 X X X STD
R97492 EXHAUST VALVE AR X X X OS, 0.381 MM (0.015")
R97493 EXHAUST VALVE AR X X X OS, 0.762 MM (0.030")
9 R98062 INTAKE VALVE 6 X X X STD
R97490 INTAKE VALVE AR X X X OS, 0.381 MM (0.015")
R97491 INTAKE VALVE AR X X X OS, 0.762 MM (0.030")
10 RE31617 SEAL 12 X X X
11 T58477 FITTING 1 X X X
12 R104592 PIPE PLUG 1 X X X
13 RE57489 CYLINDER HEAD 1 X X X (MARKED R121608)
14 R116516 ENGINE CYLINDER HEAD GASKET 1 X X X
(A) INTAKE (B) EXHAUST
ADMISSION ECHAPPEMENT
EINLASS AUSPUFF
ASPIRAZIONE SCARICO
ADMISION ESCAPE
INSUGNING AVGAS

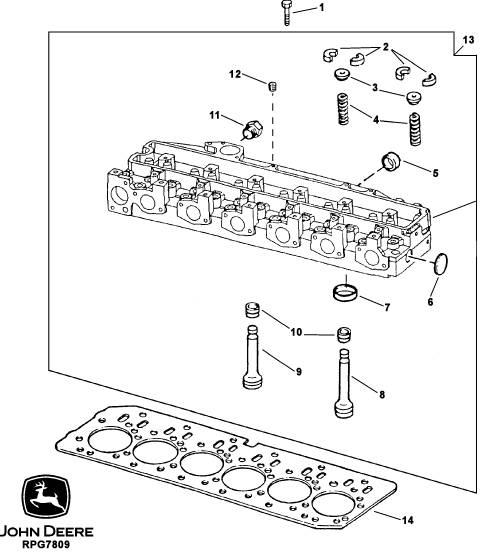

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R85363 CAP SCREW 26 X X X 12.700 X 112 MM (1/2" X 4.409")
2 R91889 RETAINER 24 X X X
3 RE60005 ROTATOR 12 X X X
4 R26125 SPRING 12 X X X
5 R43409 CAP 3 X X X
6 CD16284 CAP 1 X X X
7 R98063 VALVE SEAT INSERT 6 X X X (A) STD (DUBUQUE T0, TORREON PE)
R98335 VALVE SEAT INSERT AR X X X (A) OS (DUBUQUE T0, TORREON PE)
R106831 VALVE SEAT INSERT 6 X X X (A) STD (SARAN CD)
R85687 VALVE SEAT INSERT 6 X X X (B) STD (DUBUQUE T0, TORREON PE)
R93910 VALVE SEAT INSERT AR X X X (B) OS (DUBUQUE T0, TORREON PE)
R106829 VALVE SEAT INSERT 6 X X X (B) STD (SARAN CD)
8 R90692 EXHAUST VALVE 6 X X X STD
R97492 EXHAUST VALVE AR X X X OS, 0.381 MM (0.015")
R97493 EXHAUST VALVE AR X X X OS, 0.762 MM (0.030")
9 R98062 INTAKE VALVE 6 X X X STD
R97490 INTAKE VALVE AR X X X OS, 0.381 MM (0.015")
R97491 INTAKE VALVE AR X X X OS, 0.762 MM (0.030")
10 RE31617 SEAL 12 X X X
11 T58477 FITTING 1 X X X
12 R104592 PIPE PLUG 1 X X X
13 RE57489 CYLINDER HEAD 1 X X X (MARKED R121608)
14 R116516 ENGINE CYLINDER HEAD GASKET 1 X X X
(A) INTAKE (B) EXHAUST
ADMISSION ECHAPPEMENT
EINLASS AUSPUFF
ASPIRAZIONE SCARICO
ADMISION ESCAPE
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 R85363 CAP SCREW 26 X X 12.700 X 112 MM (1/2" X 4.409")
2 R91889 RETAINER 24 X X
3 RE60005 ROTATOR 12 X X
4 R26125 SPRING 12 X X
5 R43409 CAP 3 X X
6 CD16284 CAP 1 X X
7 R98063 VALVE SEAT INSERT 6 X X (A) STD (DUBUQUE T0, TORREON PE)
R98335 VALVE SEAT INSERT AR X X (A) OS (DUBUQUE T0, TORREON PE)
R106831 VALVE SEAT INSERT 6 X X (A) STD (SARAN CD)
R85687 VALVE SEAT INSERT 6 X X (B) STD (DUBUQUE T0, TORREON PE)
R93910 VALVE SEAT INSERT AR X X (B) OS (DUBUQUE T0, TORREON PE)
R106829 VALVE SEAT INSERT 6 X X (B) STD (SARAN CD)
8 R90692 EXHAUST VALVE 6 X X STD
R97492 EXHAUST VALVE AR X X OS, 0.381 MM (0.015")
R97493 EXHAUST VALVE AR X X OS, 0.762 MM (0.030")
9 R98062 INTAKE VALVE 6 X X STD
R97490 INTAKE VALVE AR X X OS, 0.381 MM (0.015")
R97491 INTAKE VALVE AR X X OS, 0.762 MM (0.030")
10 RE31617 SEAL 12 X X
11 T58477 FITTING 1 X X
12 R104592 PIPE PLUG 1 X X
13 RE57489 CYLINDER HEAD 1 X X (MARKED R121608)
14 R116516 ENGINE CYLINDER HEAD GASKET 1 X X
(A) INTAKE (B) EXHAUST
ADMISSION ECHAPPEMENT
EINLASS AUSPUFF
ASPIRAZIONE SCARICO
ADMISION ESCAPE
INSUGNING AVGAS
