John Deere約翰迪爾強鹿柴油發動機啟動馬達零件圖冊
詳細描述
啟動馬達

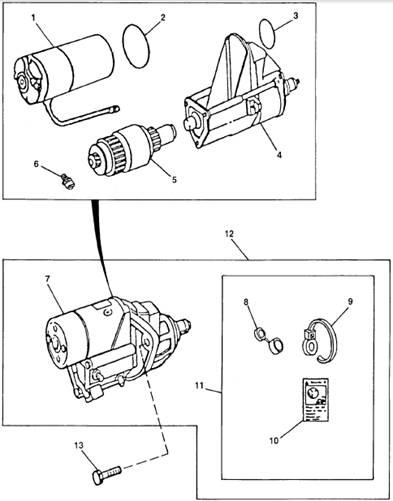

John Deere約翰迪爾強鹿6068 6.8L柴油發動機啟動馬達零件圖冊
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 .................. MOTOR 1 X X X
2 R135509 SEAL 1 X X X
3 R135510 O-RING 1 X X X
4 RE70486 SWITCH 1 X X X (LH)
RE70680 SWITCH 1 X X X (RH)
5 RE70487 CLUTCH 1 X X X
6 RE71256 SCREW, WITH WASHER 1 X X X M5 X .8
7 .................. STARTER MOTOR 1 X X X (LH) (JD RE69704)
.................. STARTER MOTOR 1 X X X (RH) (JD RE70474)
8 .................. COVER 1 X X X
9 R96703 TIE BAND 1 X X X
10 T146102 LABEL 1 X X X
11 RE70756 KIT 1 X X X
12 RE70957 STARTER MOTOR KIT 1 X X X (LH)
RE70960 STARTER MOTOR KIT 1 X X X (RH)
13 19M7786 SCREW 3 X X X M10 X 30
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS
1 R135431 COVER 1 X X X
2 R135432 NUT 1 X X X
3 T146102 LABEL 1 X X X
4 RE507638 BENDIX DRIVE 1 X X X
5 RE507637 SOLENOID 1 X X X
6 .................. STARTER MOTOR 1 X X X
7 RE507639 STARTER MOTOR KIT 1 X X X
8 R503419 STUD 1 X X X
9 12M7033 LOCK WASHER 1 883377- X X X 10.500 MM, (DUBUQUE T0)
10 19M7786 SCREW 2 X X X M10 X 30
KEY PART NO. PART NAME QTY SERIAL NO. 0 0 1 REMARKS
1 R135431 COVER 1 X
2 R135432 NUT 1 X
3 T146102 LABEL 1 X
4 RE507665 BENDIX DRIVE 1 X
5 RE507637 SOLENOID 1 X
6 .................. STARTER MOTOR 1 X
7 RE507670 STARTER MOTOR KIT 1 X
8 19M7786 SCREW 2 X M10 X 30
9 12M7033 LOCK WASHER 1 X 10.500 MM
