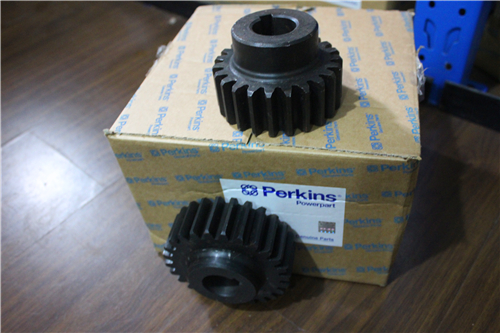

Perkins珀金斯850-854F柴油發動機T414123正時齒輪
詳細描述

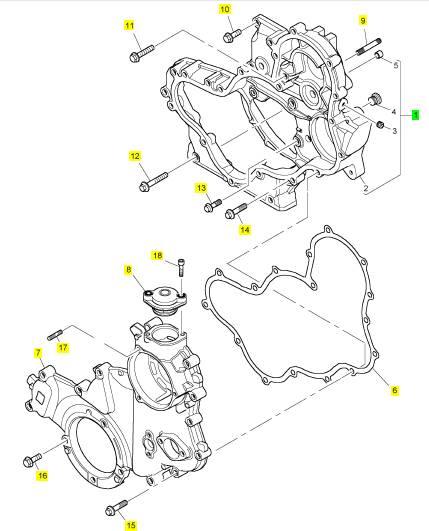

項目 零配件號碼 最新件號 描述
1 T414123 1 T414123 正時齒輪箱
6 T411957 1 T411957 密合墊 - 時間安排的蓋
7 T414145 1 T414145 時間安排蓋
8 T411915 1 T411915 放泄閥
9 2313 C062 3 2313 C062 圖釘
10 T412343 1 T412343 螺旋
11 2314 H007 1 2314 H007 螺旋
12 T412253 7 T412253 螺拴
13 T412489 3 T412489 螺旋
14 2314 H006 2 2314 H006 螺拴
15 2314 H006 13 2314 H006 螺拴
16 T412343 3 T412343 螺旋
17 2313 C041 3 2313 C041 圖釘
18 T412490 2 T412490 螺旋

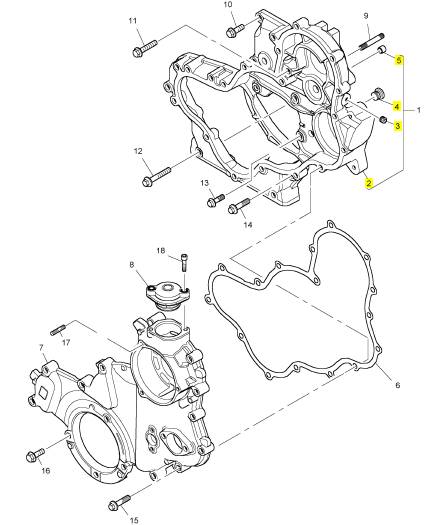

項目 零配件號碼 最新件號 描述
2 1 正時齒輪箱
3 T411881 1 T411881 栓塞
4 T411879 1 T411879 栓塞
5 T411791 2 T411791 合釘
|

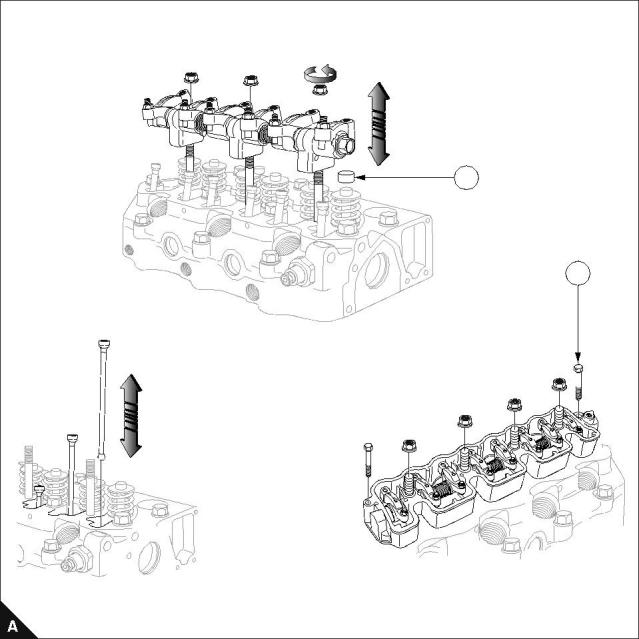

Rocker assembly |
|
To remove and to fit |
|
Operation 3-2 |
|
Special requirements |
|
Torque Nm (lbf ft) kgf m |
|
102-05, 103-07, 103-10 103-13, 103-15 104-19, 104-22 Bolts (A2) |
|
23 (17) 2,3 23 (17) 2,3 33 (24) 3,3 6 (4) 0,6 |
|
Note: Ensure that the valve stem caps (A1) remain on the valve stems. |
|
102-05 103-07 103-10 |
|
1 |
|
2 |
|
103-13 103-15 104-19 104-22 |
|
26 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
3 |
|
100 Series |
|

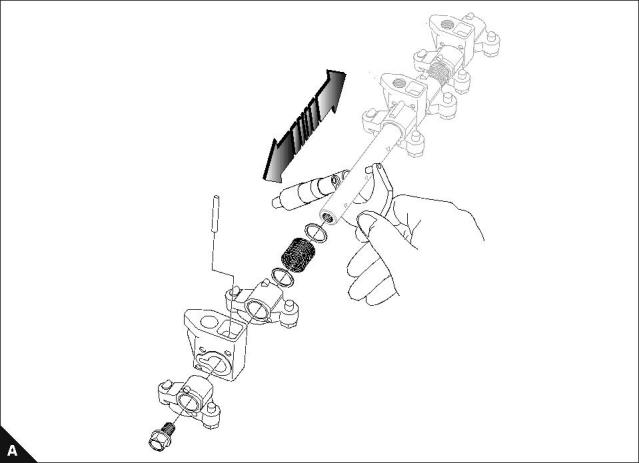

Rocker shaft (102-05, 103-07, 103-10) |
|
To dismantle, to inspect and to assemble |
|
Operation 3-3 |
|
Special requirements Diameter (A) mm (in) |
|

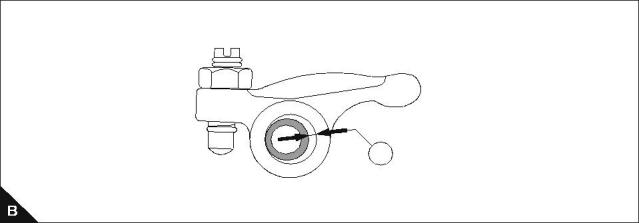

Clearance (B1) mm (in) |
|
Standard |
|
Service limit |
|
Standard |
|
Service limit |
|
11,65 - 11,67 (0.4587 - 0.4595) |
|
11,57 (0.4555) max |
|
0,032 - 0,068 (0.00126 - 0.00268) |
|
0,2 (0.008) max |
|
1 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
27 |
|
This document has been printed from SPI². Not for Resale |
|
3 |
|
100 Series |
|

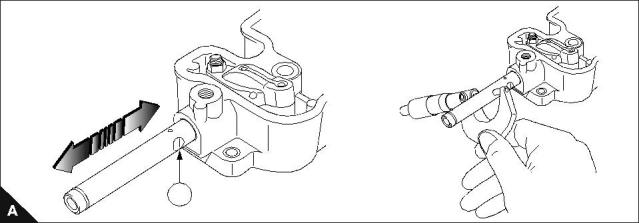

Rocker shaft (103-13, 103-15, 104-19, 104-22) |
|
To dismantle, to inspect and to assemble Special requirements |
|
Operation 3-4 |
|
Diameter (A) mm (in) |
|
Engine model |
|
Standard |
|
Service limit |
|
103-13, 103-15 104-19, 104-22 |
|
11,65 - 11,67 (0.4587 - 0.4595) 14,95 - 14,97 (0.5886 - 0.5894) |
|
11,57 (0.4555) max 14,87 (0.5854) max |
|
Clearance (B1) mm (in) |
|
Engine model |
|
Standard |
|
Service limit 0,2 (0.008) max 0,2 (0.008) max |
|
103-13, 103-15 104-19, 104-22 |
|
0,032 - 0,068 (0.00126 - 0.00268) 0,030 - 0,093 (0.00120 - 0.00366) |
|
Note: Be aware of the position of the shaft location recess (A1). |
|
1 |
|
1 |
|
28 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
3 |
|
100 Series |
|

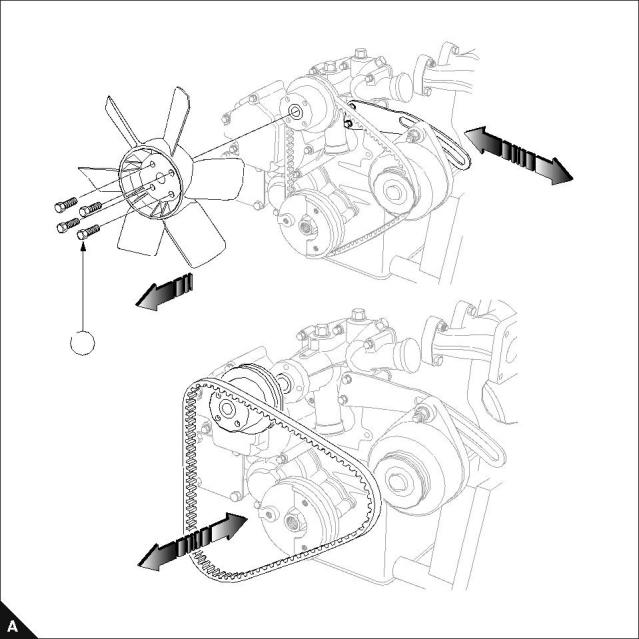

Fan and mounting |
|
To remove |
|
Operation 3-5 |
|
Special requirements |
|
Tension Nm (lbf ft) kgf m |
|
Bolts (A1) |
|
11 (8) 1,1 |
|
To fit and tension the fan belt refer to Operation 12-1. |
|
1 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
29 |
|
This document has been printed from SPI². Not for Resale |
|
3 |
|
100 Series |
|

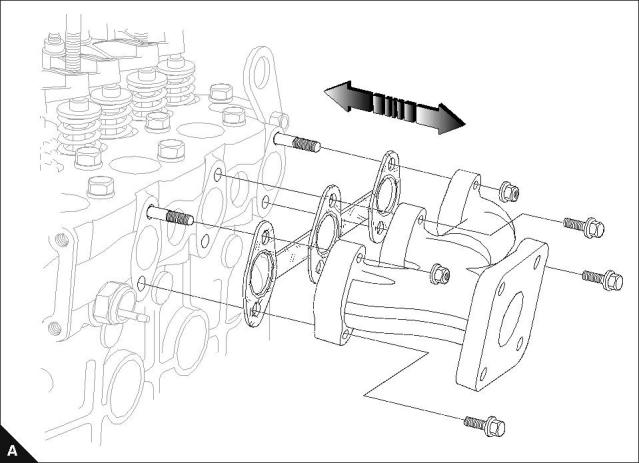

Exhaust manifold and gasket |
|
To remove and to fit |
|
Operation 3-6 |
|
30 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
This document has been printed from SPI². Not for Resale |
|
3 |
|
100 Series |
|
Fuel injection pipes / fuel return pipes |
|
To remove and to fit |
|
Operation 3-7 |
|
Special requirements Torque Nm (lbf ft) kgf m |
|
102-05, 103-07, 103-10 |
|
22 (16) 2,2 |
|
103-13, 103-15, 104-19, 104-22 |
|
20 (15) 2,0 |
|
Notes: |
|
Be aware of holes in washers (A1). |
|
For emissions approved engines. It is essential that the fuel adjustment screw is not altered from the original setting. |
|
For emissions approved engines. The maximum No Load Speed must be checked after assembly. |
|
1 |
|
Workshop Manual, TPD 1377E, issue 4 |
|
31 |
|
This document has been printed from SPI². Not for Resale |
