珀金斯柴油發動機正時齒輪箱墊片U831746G
詳細描述

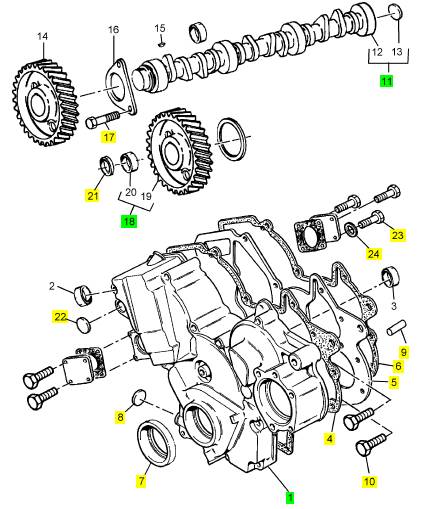

項目 零配件號碼 最近的部分號碼 描述
2415 A015 1 2415 A015 密封 - O 的圈
1 4142 A205 1 4142 A205 TIMINGGEAR 蓋 U831746G
1 4142 C008 1 檢查歷史 TIMINGGEAR 蓋 U831745G
4 3687 M036 1 3687 M036 正時齒輪箱墊片 U831746G
4 3687 M031 1 3687 M031 正時齒輪箱墊片 U831745G
5 3625 A009 1 3625 A009 板 U831746G
5 3625 V002 1 3625 V002 板 U831745G
6 3687 M032 1 3687 M032 密合墊 - 正時齒輪箱
7 2418 F546 1 2418 F546 密封 -前面端油
8 2485 A013 1 2485 A013 栓塞
9 3313 E726 2 3313 E726I 合釘
10 2314 H002 4 2314 H002 螺旋
11 4112 K005 1 4112 K005 凸輪軸組合
17 2314 F001 2 2314 F001 螺旋
18 4111 A017 1 4111 A017 惰輪傳動機構
21 2131 A505 2 2131 A505 墊圈
22 2487 A015 1 2487 A015 栓塞 U831746G
23 2314 H003 3 2314 H003 螺旋 U831746G
23 2314 H003 1 2314 H003 螺旋 U831745G
23 2314 H005 2 2314 H005 螺旋 U831745G
24 2411156 1 2411156 墊圈 U831746G

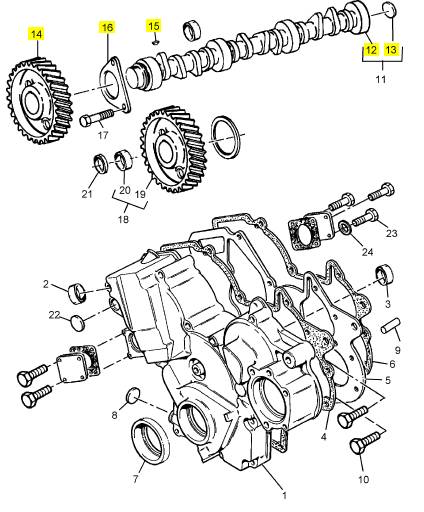

項目 零配件號碼 最近的部分號碼 描述
12 1 橋
12 1 凸輪軸
13 2485 A601 1 2485 A601 栓塞
14 3117 L081 1 檢查歷史 凸輪軸傳動機構
15 L623CF03 1 L623CF03 半圓鍵
16 3617 H009 1 3617 H009 板

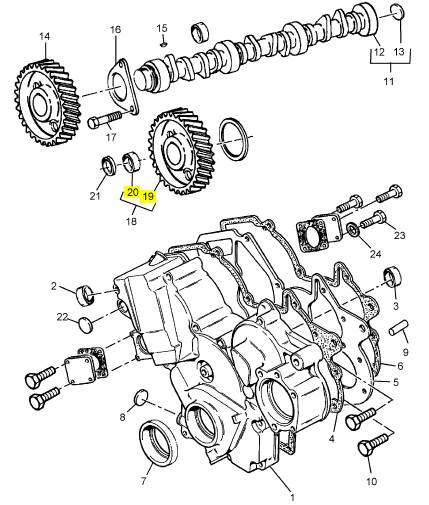

項目 零配件號碼 最近的部分號碼 描述
19 3117 L181 1 4111 A017 惰輪傳動機構
19 1 傳動機構
20 3112 C001 1 3112 C001 惰輪傳動機構襯套
20 3112 C001 2 3112 C001 惰輪傳動機構襯套

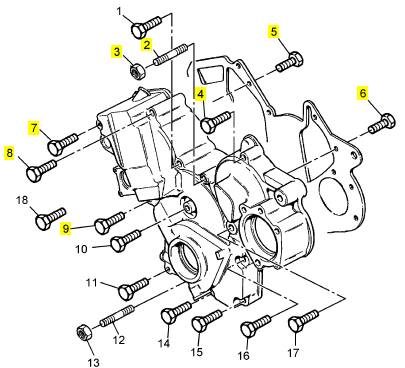

項目 零配件號碼 最近的部分號碼 描述
1 2314 H013 1 2314 H013 螺旋
2 2313 M068 1 2313 M068 圖釘
3 2318 A603 1 2318 A603 螺帽
4 2314 H013 1 2314 H013 螺旋
5 2314 H003 1 2314 H003 螺旋
6 2314 H003 1 2314 H003 螺旋
7 2314 H021 1 2314 H021 螺旋
8 2314 H013 1 2314 H013 螺旋
9 2314 H017 1 2314 H017 螺旋
10 2314 H005 1 2314 H005 螺旋
11 2314 H013 1 2314 H013 螺旋
12 2313 M068 1 2313 M068 圖釘
13 2318 A603 1 2318 A603 螺帽
14 2314 H008 1 2314 H008 螺旋
15 2314 H008 1 2314 H008 螺旋
16 2314 K161 1 2314 K161 螺旋
17 2314 H012 1 2314 H012 螺旋
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3681E029 1 3681E029 GASKET - CYLINDER HEAD
3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER
4 3685A011 1 3685A011 GASKET - WATER PUMP
5 36834169 1 36834169 GASKET - WATER CONNECTION
6 3681V009 1 3681V009 GASKET - IND MANIFOLD
7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD
8 U3688C037 1 U3688C037 GASKET
9 2415H490 4 2415H490 SEAL - INJECTOR
10 L311FF02 4 L311FF02 INJECTOR WASHER
11 4141A009 4 4141A009 CLAMP
14 2418M508 8 2418M508 SEAL - VALVE STEM
15 26420224 8 26420224 SEAL - INJECTOR
16 33811112 1 33811112 OLIVE
17 33811113 3 33811113 OLIVE
18 33811115 2 33811115 OLIVE
19 0566003 1 0566003 OLIVE
20 3682M002 1 3682M002 GASKET - WATER PUMP
21 2415A086 1 2415A086 SEAL - O RING
22 2415A092 1 2415A092 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
9 U5LL0034 4 U5LL0034 PISTON KIT
(9) U5LL0034B 4 U5LL0034B PISTON KIT - OVERSIZE
10 4181A101 4 4181A101 PISTON RING KIT
(10) 4181A102 4 4181A102 PISTON RING KIT
11 U5LT0343 1 U5LT0343 GASKET KIT - TOP
12 U5LB0369 1 U5LB0369 GASKET KIT - BOTTOM
13 21826051 1 21826051 SEALING COMPOUND 50ml
14 3353A011 8 3353A011 CON ROD NUT
15 3275A004 8 3275A004 CON ROD BOLT
16 2418F546 1 2418F546 SEAL - FRONT END OIL
17 2418F547 1 2418F547 SEAL - REAR END OIL
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3681E029 1 3681E029 GASKET - CYLINDER HEAD
3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER
4 3685A011 1 3685A011 GASKET - WATER PUMP
5 36834169 1 36834169 GASKET - WATER CONNECTION
6 3681V009 1 3681V009 GASKET - IND MANIFOLD
7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD
8 U3688C037 1 U3688C037 GASKET
9 2415H490 4 2415H490 SEAL - INJECTOR
10 L311FF02 4 L311FF02 INJECTOR WASHER
11 4141A009 4 4141A009 CLAMP
14 2418M508 8 2418M508 SEAL - VALVE STEM
15 26420224 8 26420224 SEAL - INJECTOR
16 33811112 1 33811112 OLIVE
17 33811113 3 33811113 OLIVE
18 33811115 2 33811115 OLIVE
19 0566003 1 0566003 OLIVE
20 3682M002 1 3682M002 GASKET - WATER PUMP
21 2415A086 1 2415A086 SEAL - O RING
22 2415A092 1 2415A092 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3684N023 1 3684N023 GASKET - SUMP
3 3688X003 2 3688X003 SEAL - OIL
4 3688X004 4 3688X004 SEAL - OIL
5 3685A009 1 3685A009 GASKET
6 3685R007 1 3685R007 GASKET - LIFT PUMP
7 3684C004 1 3684C004 GASKET
8 3687M031 1 3687M031 GASKET - TIMING CASE COVER
9 3687M036 1 3687M036 GASKET - TIMING CASE COVER
10 3687M032 1 3687M032 GASKET - TIMING CASE
11 2415A015 1 2415A015 SEAL - O RING
12 2415A039 1 2415A039 SEAL - O RING
13 2415H031 1 2415H031 SEAL - O RING
14 2415A092 1 2415A092 SEAL - O RING
15 2415A036 1 2415A036 SEAL - SENSOR
16 2415B135 1 2415B135 SEAL - O RING
17 2415715 4 2415715 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 U5LL0034B 4 U5LL0034B PISTON KIT - OVERSIZE
3 4181A102 4 4181A102 PISTON RING KIT
4 U5LT0343 1 U5LT0343 GASKET KIT - TOP
5 U5LB0369 1 U5LB0369 GASKET KIT - BOTTOM
6 21826051 1 21826051 SEALING COMPOUND 50ml
7 3353A011 8 3353A011 CON ROD NUT
8 3275A004 8 3275A004 CON ROD BOLT
9 2418F546 1 2418F546 SEAL - FRONT END OIL
10 2418F547 1 2418F547 SEAL - REAR END OIL
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3681E029 1 3681E029 GASKET - CYLINDER HEAD
3 3681A056 1 3681A056 GASKET - CYL. HEAD COVER
4 3685A011 1 3685A011 GASKET - WATER PUMP
5 36834169 1 36834169 GASKET - WATER CONNECTION
6 3681V009 1 3681V009 GASKET - IND MANIFOLD
7 3688A009 1 3688A009 GASKET - EXHAUST MANIFOLD
8 U3688C037 1 U3688C037 GASKET
9 2415H490 4 2415H490 SEAL - INJECTOR
10 L311FF02 4 L311FF02 INJECTOR WASHER
11 4141A009 4 4141A009 CLAMP
14 2418M508 8 2418M508 SEAL - VALVE STEM
15 26420224 8 26420224 SEAL - INJECTOR
16 33811112 1 33811112 OLIVE
17 33811113 3 33811113 OLIVE
18 33811115 2 33811115 OLIVE
19 0566003 1 0566003 OLIVE
20 3682M002 1 3682M002 GASKET - WATER PUMP
21 2415A086 1 2415A086 SEAL - O RING
22 2415A092 1 2415A092 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3684N023 1 3684N023 GASKET - SUMP
3 3688X003 2 3688X003 SEAL - OIL
4 3688X004 4 3688X004 SEAL - OIL
5 3685A009 1 3685A009 GASKET
6 3685R007 1 3685R007 GASKET - LIFT PUMP
7 3684C004 1 3684C004 GASKET
8 3687M031 1 3687M031 GASKET - TIMING CASE COVER
9 3687M036 1 3687M036 GASKET - TIMING CASE COVER
10 3687M032 1 3687M032 GASKET - TIMING CASE
11 2415A015 1 2415A015 SEAL - O RING
12 2415A039 1 2415A039 SEAL - O RING
13 2415H031 1 2415H031 SEAL - O RING
14 2415A092 1 2415A092 SEAL - O RING
15 2415A036 1 2415A036 SEAL - SENSOR
16 2415B135 1 2415B135 SEAL - O RING
17 2415715 4 2415715 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 3318A702 8 3318A702 VALVE GUIDE
3 3142H051 4 3142H051 INTAKE VALVE
4 3142A101 4 3142A101 EXHAUST VALVE
5 3174P408 8 3174P408 VALVE SPRING
6 3142W003 16 3142W003 VALVE COLLET
